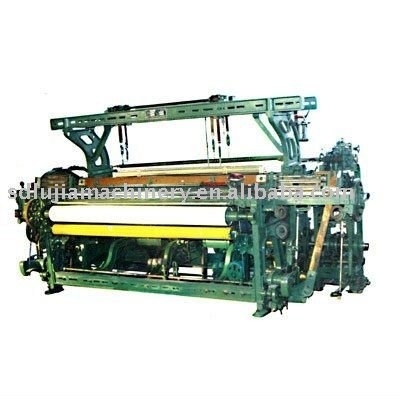

GA615A3- (2X4) Computer Control GA615A3 Power Type Loom

GA615A3(2x4)-135-150cm Multi-shuttle-box Loom is a new type of color weaving machine based on 1515A structure with features of simple structure,easy operation and maintenance,and most of the parts and components are ex-changeable .According to one weft, one color technological requirement,seven wefts of different colors can be freely selected for weaving so you can get a great variety of fabric designs and colors with strong three-dimensional effect. This loom can be used for various fabric with cotton , synthetic yarn ,blended yarn etc. it's the only 2X4 multi-box cotton loom.
Technical Features:

(1)Type---Under picking type, multi-shuttle-box, automatic stop, manual weft replenishing
(2)reed space-56"63"75"

(3)hand type:R&L
(4)Max.space of warp: 130cm(56") ,147cm(63"), 177cm(75")
(5)Angle between reed and shuttle plate:86°36¹

(6)Crank shaft speed:110-120rpm
(7)Device system: clutch driven by motor with triangle type belt
(8)Motor model: model Fo-53-6N: 0.8Kw .960r/min.
(9)Shuttle box type: 2×4 multi- box.
(10)Shuttle box movement: edentulous gear lifting shuttle box movement.
(11)Shuttle box switch: steel board control, random even shuttle box switch.
(12)Save steel board: utilize veering of aperture or imperforate control panel on one
side, control 16, 32 or 64 shuttles by the other side.
(13)Shedding device: double tappet shedding(dobby shedding Max.14 frames)
(14)Beating-up motion: warp yarn protecting readsliding beating-up
(15)Let off motion : warp feeding automatically positively or semi-positively, swelling
strength-compensated warp feeding.
(16)Rolling type: seven teeth interval rolling, max rolling dia: 300mm

(17)COLOUR:GREEN
(18)Weft stop motin side fork or weft feeler without weft,machine stop.
(19)Shuttle: length:
370mm×width 44.5mm×height 33.5mm Angle: 86°30. Left and right type.
\Weft pipe: length 195mm× exterior warp dia: 12.5mm,
common weft pipe, with weft inspection groove.

Outline reed: length: 1394mm(56") 1568mm(63") 1873mm(75") .
heald length: 305mm. or 330mm
Warp stop piece: length 120mm×width 11mm×thickness 0.2mm .
